ChargersCharge Amps AB
Luna
Explore the charging power, connection and features of this model, then check the installation and car compatibility that matter for your home.
In short
What you need to know
Specifications checked 1 October 2026.
- Charging power
- 22 kW
- Plug
- Type 2
- Cable
- Socket only. Bring your own cable
- Home supply
- Single and three phase

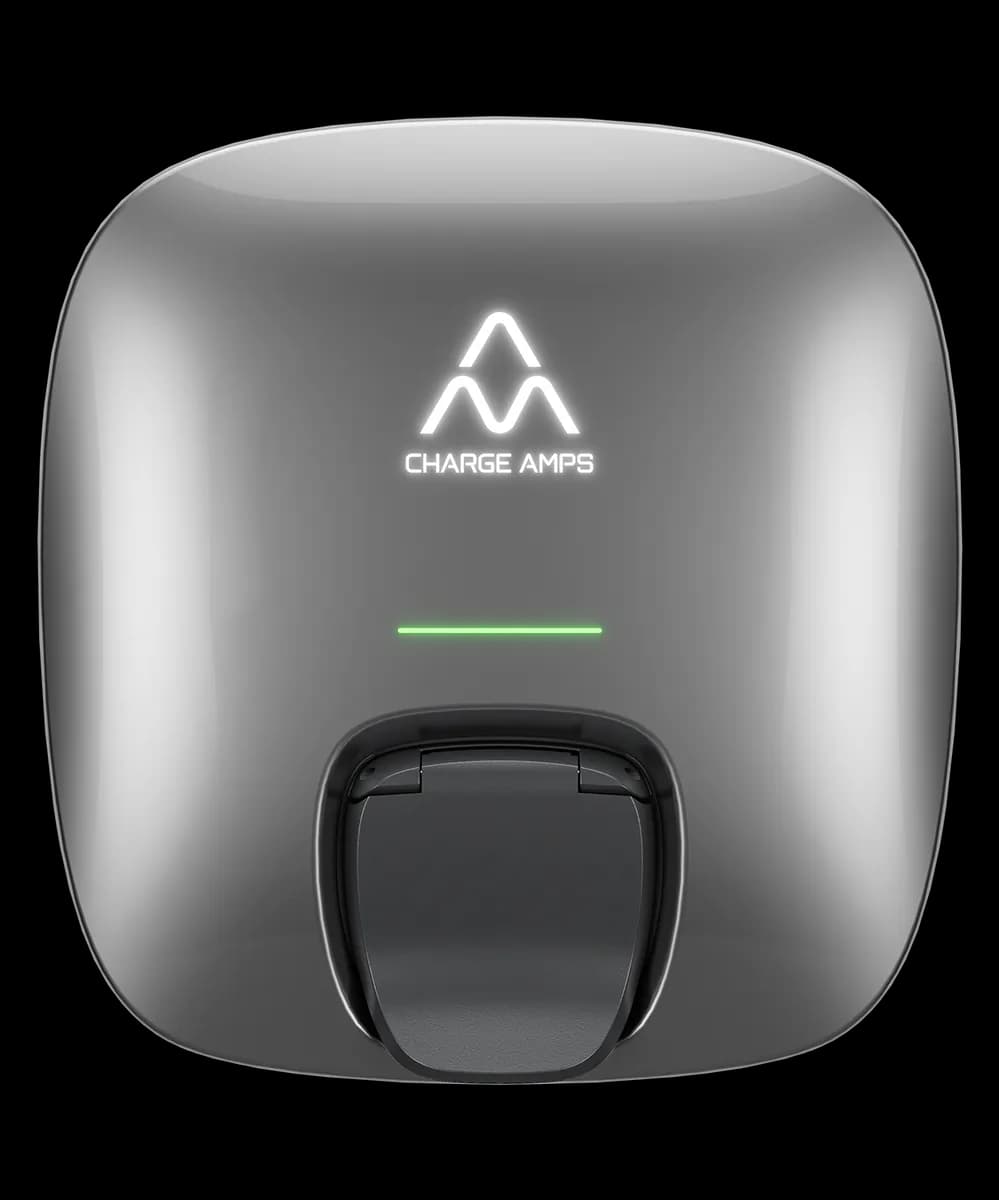

The Charge Amps AB Luna 131462 is a single and three-phase 22 kW EV charger with a Type 2 connection, untethered. The manufacturer documentation states OCPP back-office communication support.
The details
Specifications and features
These details apply to the specific version shown. See the manufacturer documents below for more information.
- Connectivity options
- Wi-Fi, 4G LTE, BluetoothChecked 1 October 2026
- Connector type
- Type 2Checked 1 October 2026
- Dynamic load management
- SupportedChecked 1 October 2026
- Installation characteristics
- Home charger for grid or solar charging; operating temperature -35C to +45C; IP 54 and IK 10; built-in RCD Type-B complying with IEC 60947-2 (AC 30 mA, DC 6 mA); 210 x 80 x 220 mm; 1.3 kg.Checked 1 October 2026
- Maximum AC charging power
- 22 kWChecked 1 October 2026
- OCPP support
- SupportedChecked 1 October 2026
- Smart charging functionality
- SupportedChecked 1 October 2026
- Solar charging compatibility
- SupportedChecked 1 October 2026
- Supported electrical phases
- Single and three phaseChecked 1 October 2026
- Tethered configuration
- UntetheredChecked 1 October 2026
Versions
Does this apply to every version?
Check the exact version before ordering, especially if you want a different cable or charging power.
These specifications apply to the named model and configuration. Check the exact version before ordering.
Sources
Manufacturer information
Manufacturer documents for this specific version.
- Charge Amps Luna official product page and technical specification
Charge Amps AB
Source consulted 28 September 2026
Open the manufacturer document
